SRAM 12 Speed Rear Derailleurs

SRAM XX1 12 Speed
SHIFT REALITY
Occupying a new realm in shifting performance, the redesigned XX1 Eagleâ„¢ derailleur gives no-compromise racers and dream-bike builders a true top-tier option. The crisp, precise XX1â„¢ shifting feel athletes rely on now features an updated cage geometry for improved chain management. Occupying its rightful place at the top of the Eagleâ„¢ ecosystem, the XX1 Eagleâ„¢ rear derailleur makes full use of the new 10-52t cassettes and is backwards compatible to also work with the 10-50t.

FEATURES
Updated cage geometry provides better chain retention and crisper shifting.
Comes in XX1 Eagleâ„¢ master colorway as part of Eagleâ„¢ Colorsystem – to go with all cassette and chain color options – Black, Gold, Rainbow, HardChrome and all-new Copper.
Backwards compatible, works with 10-50t and new 10-52t cassettes.

SPECIFICATIONS
Speed (RD) 12s
Cable pull ratio X-actuation
Cage (RD) n/a
Max tooth 52
Color (RD) Lunar
Pulley bearings material n/a
Cage material (RD) n/a

SRAM X01 12 Speed
ELEVATED CAPABILITY
Elevating the shift, expanding the capable, the X01 Eagleâ„¢ derailleur features an updated cage architecture, to provide better chain management than ever. The X01 Eagleâ„¢ rear derailleur works with the new 10-52t cassettes and is backwards compatible to also work with 10-50t options. As part of the new Eagleâ„¢ Colorsystem, it comes in X01 Eagleâ„¢ master colorway to go perfectly with any color cassette and chain a rider wants.

FEATURES
Updated cage provides better chain retention and more precise shifts.
Comes in X01 Eagleâ„¢ master colorway as part of Eagleâ„¢ Colorsystem – to go with all cassette and chain color options – Black, Gold, Rainbow to HardChrome and all-new Copper.
Backwards compatible, works with 10-50t and new 10-52t cassettes.

SPECIFICATIONS
Speed (RD) 12s
Cable pull ratio X-actuation
Cage (RD) n/a
Max tooth 52
Color (RD) Lunar
Pulley bearings material n/a
Cage material (RD) n/a

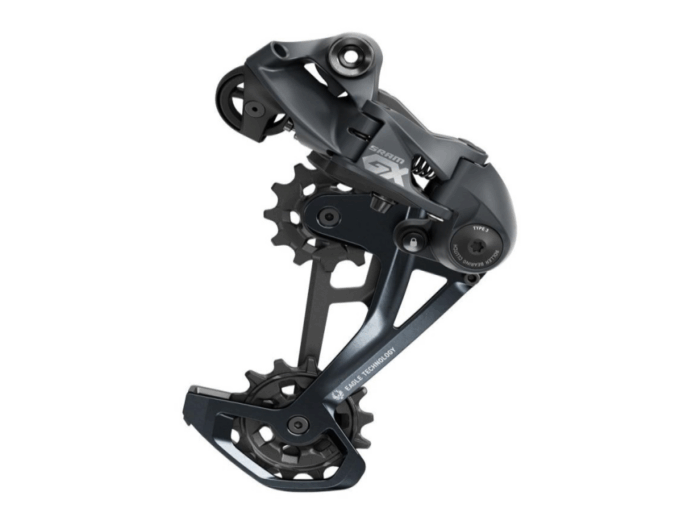

SRAM GX 12 Speed
ALL-TIME
Riders want the derailleur to do its job shifting on command, whether under climbing load or the stage finish. The GX Eagleâ„¢ derailleur gets it done with an updated cage architecture that improves chain management. Refined to work with the new 10-52t cassettes, it’s also backwards compatible for the 10-50t versions. Giving riders choice, because that’s how it should be. Finished with the new GX Eagleâ„¢ master colorway – to compliment any cassette and chain colorway a rider wants from the Eagleâ„¢ Colorsystem. Further proof that the GX Eagleâ„¢ derailleur is there for one thing – to do the job.

FEATURES
Backwards compatible, works with both 10-50t and new 10-52t cassettes.
Updated cage architecture provides better chain retention and precise shifts.
Comes in GX Eagle™ master colorway as part of Eagle™ Colorsystem and goes with all colors of Eagle cassettes & chains – from Black to Gold to Rainbow, to HardChrome and new Copper.

SPECIFICATIONS
Speed (RD) 12s
Cable pull ratio X-actuation
Cage (RD) Long
Max tooth 52
Color (RD) Lunar
Pulley bearings material Steel
Cage material (RD) Aluminum

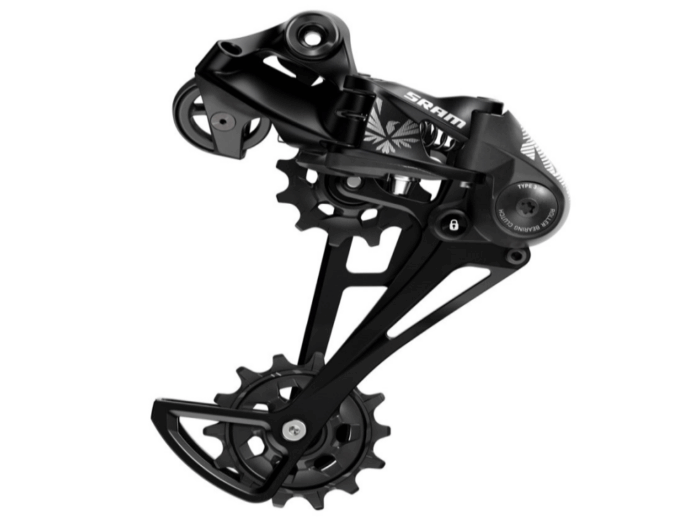

SRAM NX Eagle Rear Derailleur
PURPOSE
This new NX Eagle™ derailleur features the proven SRAM 1x-specific X-HORIZON™ design. The larger, 14-tooth X-SYNC™ lower pulley easily facilitates 11- to 50- and 10- to 50-tooth cassette capacity, and also adds to NX Eagle’s overall smooth-pedaling feel. The Type-3 ROLLER BEARING CLUTCH™ provides quiet, consistent performance and durability.

FETAURES & BENEFITS
Completely new rear derailleur incorporating our proven X-HORIZONâ„¢ design and Type-3 ROLLER BEARING CLUTCHâ„¢ technology
Eagleâ„¢ ecosystem-engineered mounting system and CAGE LOCKâ„¢ positioning add robustness.
Eagleâ„¢ pulley technology provides greater efficiency, crisper shifting and quieter operation.

Specifications for NX Eagleâ„¢ Rear Derailleur
SPEEDS 12s
MATERIAL Aluminum, Steel pulley
WEIGHT 339g
COLOURS Black
OUTER CAGE Aluminum
COMPATIBILITY All levels of Eagleâ„¢ drivetrain systems
INNER CAGE Aluminum
SPRING Steel
CAGE SIZES Long
MAX TOOTH 50t
PULL X-ACTUATIONâ„¢
TECHNOLOGY HIGHLIGHT(S) X-HORIZONâ„¢, X-ACTUATIONâ„¢, X-SYNCâ„¢, ROLLER BEARING CLUTCHâ„¢, CAGE LOCKâ„¢
HARDWARE Stainless steel, Black

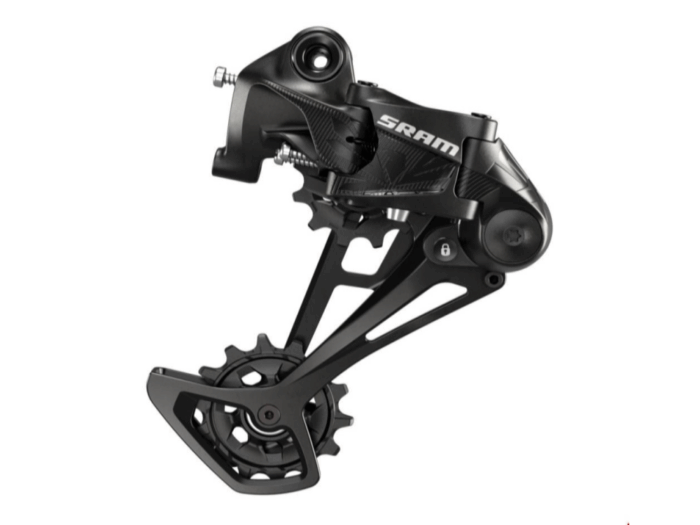

SRAM SX Eagle Rear Derailleur
This new SX Eagleâ„¢ derailleur features the proven SRAM 1x-specific X-HORIZONâ„¢ design and easily facilitates 11- to 50- and 10- to 50-tooth cassette capacity, providing quiet, consistent performance and durability..

FETAURES & BENEFITS
A fully featured Eagle derailleur. Now offering more Eagleâ„¢ options than ever before.
X-SYNCâ„¢ pulley technology provides greater efficiency, crisper shifting and quieter operation.
Cage Lock offers discovery-level riders easy trail side wheel removal

Specifications for SX Eagleâ„¢ Rear Derailleur
SPEEDS 12s
MATERIAL Aluminum, Steel pulley
COLOURS Black
COMPATIBILITY All levels of Eagleâ„¢ drivetrain systems
SPRING Steel
CAGE SIZES Long
MAX TOOTH 50t
PULL X-ACTUATIONâ„¢
TECHNOLOGY HIGHLIGHT(S) X-HORIZONâ„¢, X-ACTUATIONâ„¢, X-SYNCâ„¢, ROLLER BEARING CLUTCHâ„¢, CAGE LOCKâ„¢
HARDWARE Stainless steel, Black
